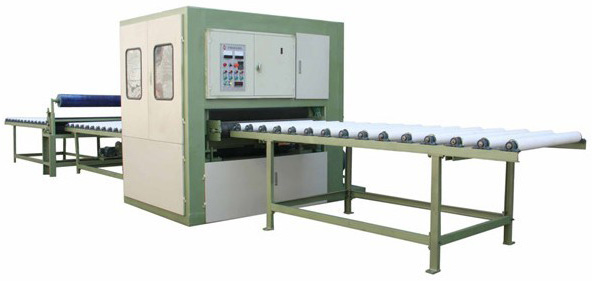

No. 4 Oil Grinding Machine for Stainless Steel Sheets & Coils

No. 4 Oil Grinding Machine for Stainless Steel Sheets & Coils

No.4 surface finis is most popular among finishes, this royal and elegant looking oil grinding stainless steel finish sells the maximum.

This equipment is used to process stainless steel oil abrasive alabaster finishing sheet (No. 4). The machine process modes defined as sand band wheel includes one group of sand band, two groups of sand band and three groups of sand band. A set of machine includes an oil grinder, a cleaner, a coating machine, a delivery table, an electric cabinet and a sent of grinding oil device.

Machine Features:
●The machine is suitable for 0.4mm~3.0mm stainless steel, aluminium and composite panels for No 4 Oil Polished finish
●Platform in feed rollers is attached with transmission device
●The thickness of the metal sheet while processing can be easily adjusted by viewing a controller panel which displays the sheet thickness
●The grinding head motors are equipped with frequency control. Long and short grain can be obtained as per requirement
●Four columns are synchronized and lifted for best accuracy
●The grinding head and bottom roller can be adjusted individually, thus making the operation easy Grinding fluid is filtered and circulated for better environment control

Technique Parameters:

Model

Grinding head

Working width

Working Thickness

Working Speed

Total Power

HD-1S*1300(0)

1

1250mm

0.5-3.0mm

0.5-15m/min

25Kw

HD-2S*1300(0)

2

1250mm

0.5-3.0mm

0.5-15m/min

47Kw

HD-2S*1300(0)

3

1250mm

0.5-3.0mm

0.5-15m/min

70Kw
