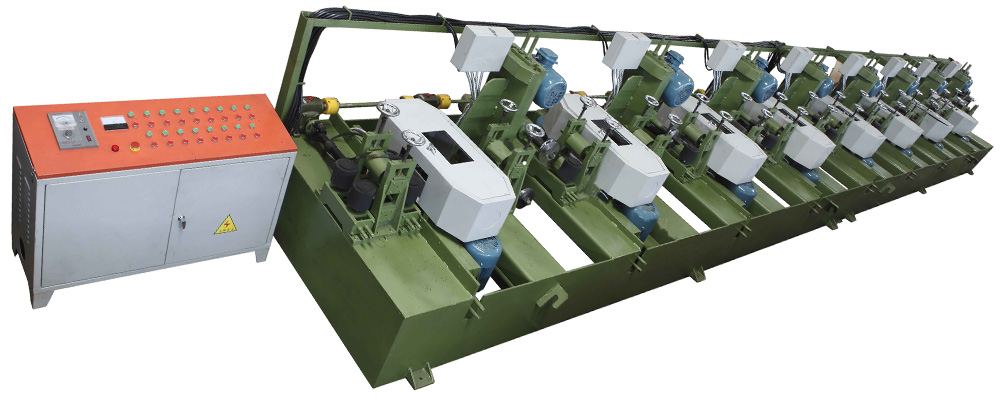

Square/Rectangular Tube/Pipe Polishing Machine

Square/Rectangular Tube/Pipe Polishing Machine

Structures:
 Square and Rectangle Pipe/Tube Polishing Machine:
 1、Forward convey table & stacking racket
 2、Polishing machine
 3、Backward convey table & stacking racket
 4、Electric control system
 5、Unloading shelf

Automatic production line: feeding, polishing (flap wheel, sisal wheel, cloth wheel, wind cloth wheel) plus polishing wax, and unloading.

Advantages:
● easy to replacing polishing materials, saving working hours;
● easy and simple operation;
● reliable quality and reasonable price;
● environmental friendly;
● shiny and smooth effect help to increase economic benefit & additional values for the finished product.

Specifications:


Model

Head Driving Motor (kw)

Total Power (kw)

Diameter of head spindle (mm)

Pipe Size Range (m/m)

Polishing Speed(m/min)

Main Unit Size(mm) (L x W)

32 head square pipe polishing machine(HD-15)

4kw X 32

133.5kw

∮36

F10xF10-F90xF90

4-35

11700X1500

28 head square pipe polishing machine(HD-16)

4kw X 28

117.5kw

∮36

F10xF10-F90xF90

4-35

10500X1500

24 head square pipe polishing machine(HD-17)

4kw X 24

101.5kw

∮36

F10xF10-F90xF90

4-35

8600X1500
