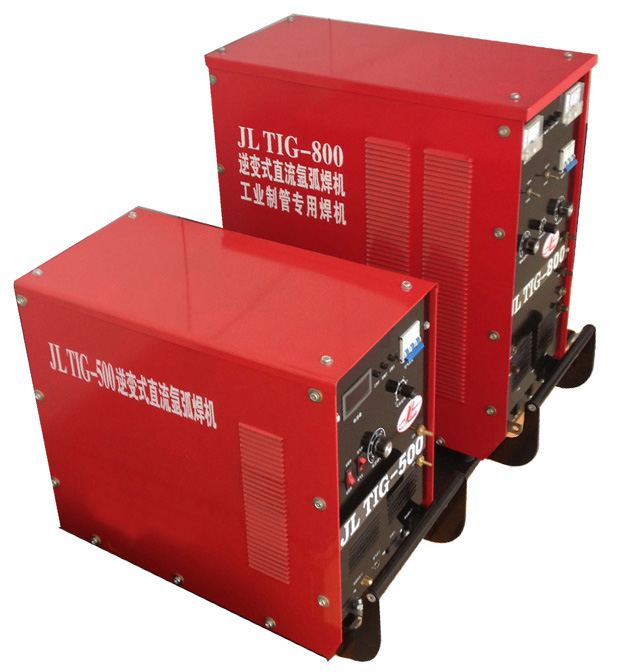

TIG Welder

TIG Welder

Features:
1. IGBT-controlled DC Arc welding machine, Excellent dustproof and drop-proof.
2. It is designed to provide the function of protection from electric shock as the means for safe working high above the ground and in damp environments.
3. The main power components, PC Board, switch, potentiometer and so on are built in 2 hermetic chambers, which effectively prevents from ingression of dust. The intake port is positioned at the top layer, which highly improve the efficiency of heat emission.
4. The high-temperature resistant design.
5. The argon-arc welding with torch starting uses the unique control technology to automatically cause arc starting at low current to avoid burning of the tungsten electrode.
6. The digital display on the panel is easy to read and set distance up.
7. Protective circuit of over-heat, over-current and over-voltage.
8. It can be used for welding by using various stainless steel, carbon steel, etc.

Model S-500 S-630 S-800
Rated Input Voltage (V) 3PH AC380V± 15% 3PH AC380V± 15% 3PH AC380V± 15%
Frequency(HZ) 50/60 50/60 50/60
Rated Input Capacity (KVA) 15.8 24.6 38
Rated Input Current (A) 24 38.1 58
Rated Duty Cycle (%) 80 80 80
Power factor 0.93 0.93 0.93
Efficiency(%) 85 85 85
Welding Current Adj.Range(A) 5-500 5-630 5-800
Output no-load voltage(V) 75 80 85
Cooling Method air/water air/water air/water
Insulation Class F F F
Protection Class IP21 IP21 IP21
Overall Size (mm) 610*320*590 610*320*590 630*400*620
Weight(Kg) 43 45 60
