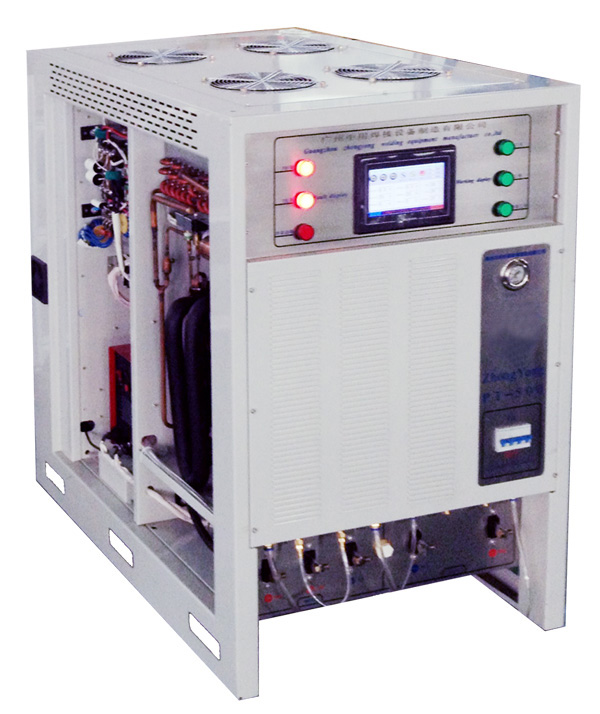

Plasma Welder

Plasma Welder

1.APPLICATION
Apply in high-quality, low-distortion linear seams welding. Such as: petroleum chemical container, solar water heaters, electric water heaters, pipe manufacturing, and automobile industries mechanized welding.

2.CONTROL SYSTERM
With PLC control, DC motor drives, stepless speed regulation, automatic welding control system, and oscillation with a linear device for Optional.

3.WELDING PROCESS
With different guard ring and groove in line on the back of the welding seam, welding can be 100% penetration, and to ensure that one side welding with back formation.
Welders piece thickness is 0.4 ~ 8mm, welding speed is 0.2 ~ 2.2m/min.
Automatic longitudinal seam welding system can use different welding process, such as arc welding, gas shielded welding, plasma welding, etc.

Product main features:

● High frequence soft switch changeover, high efficiency, small volume, light weight;
● Provided with pedal control interface for safe operation;
● Sound control performance, multiple purpose and easy operation;
● Use of passive power factor for correction, high power factor;
● Advanced inverter design system delivers continuously adjustable constant current output.
● High open circuit voltage ( ) for good arc striking and for good quality welding.
● Actual welding current & pilot arc current can be seen on front panel digital display.
● Complete accessories: Welding torch, welding cable, earth clamp, welding holder, cutting torch, carton box

Specifications:

Model PWF-350 PWF-500 PWF-630
Rated Input Voltage (V) 3PH AC380V± 15% 3PH AC380V± 15% 3PH AC380V± 15%
Frequency(HZ) 50/60 50/60 50/60
Rated Input Capacity (KVA) 10 15.8 24.6
Rated Input Current (A) 15.6 24 38.1
Rated Duty Cycle (%) 60 60 60
Power factor 0.93 0.93 0.93
Efficiency(%) 85 85 85
Welding Current Adj.Range(A) 5-350 5-500 5-630
Output no-load voltage(V) 75 75 80
Cooling Method air/water air/water air/water
Insulation Class F F F
Protection Class IP21 IP21 IP21
Overall Size (mm) 630*400*620 630*400*620 630*400*620
Weight(Kg) 38 45 48
