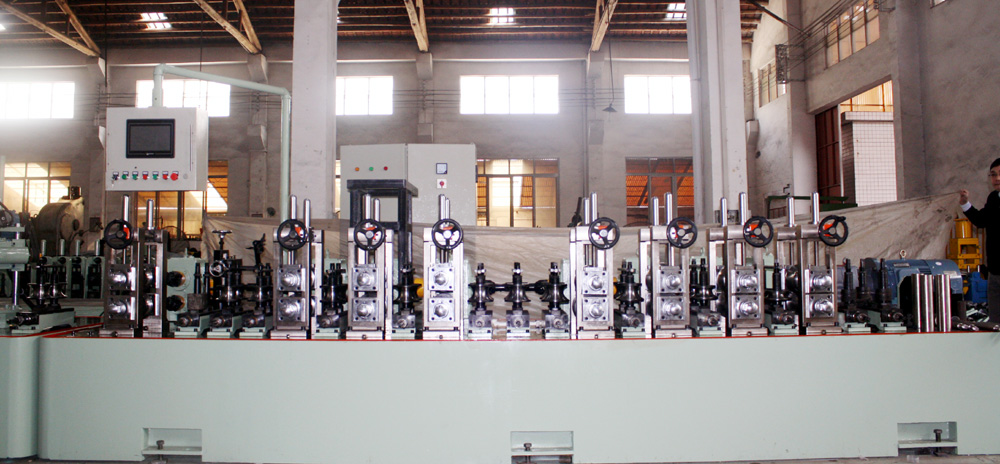

High Precision Pipe/Tube Making Machine

High Precision Pipe/Tube Making Machine

The machine is manufacturing industrial stainless steel pipes/tubes widely applied in auto parts, paper, petrol, medical use, refrigeration, chemical, food and beverage handling equipment, heating elements/heat exchanger, drilling and exploration platforms, aerospace and nuclear industry Etc. With most advanced technology, robust structure, and high precision equipment, it meets high industrial demands.

Structures:
● Single side/double side uncoiler
● Strip butt welding equipment : manual welding table or shear and butt welding machine
● 3-stage roller tube making machine
  Forming section
  Welding section
  Sizing section
● Cooling section
● Weld bead grinder
● Equipment for inside weld bead control (Recommended )
● In-line bright annealing equipment (Recommended)
● Auto-cut off
● Run out table
● Electric control system
● TIG welding machine + cooling equipment/ Plasma welding machine + cooling equipment
● Unloading shelf
● Rolls made of SKD-11

Automatic production line:
uncoiling,forming, welding, grinding, inside weld bead removing, outside weld bead grinding, sizing, bright annealing, straightening,, testing, letter spraying, fixing length, cutting, collecting. It can be done at one time.

Advantages:
a. Our machines are manufactured from finest materials. Steady, durable and long lifetime.
b. Automatic control, safe and easy to operate.
c. Easy to replace the molds, save working hour and increase efficiency.
d. Low noise.
e. The machine and make different type of stainless steel pipe/tube which are round, square, rectangle type of pipe/tube

Specifications:


Model
horizontal axis diameter (mm) vertical axis diameter (mm) Pipe
diameter
(mm)
Wall thickness (mm) Main motor power Machine size
(L * W * H) (mm)
HD-P40 40 25 Ф8-Ф51 0.5-2.0 Front
7.5 KW
Rear
5.5KW
29.0 * 1.5 *2.2
HD-P50 50 30 Ф25-Ф63 0.5-3.0 Front
11KW
Rear
7.5KW
32.0 * 1.5 *2.2
HD-P60 60 40 Ф50-Ф114 0.6-3.5 Front
15 KW
Rear
15KW
35.0 * 1.8 *2.2
HD-P80 80 50 Ф89-Ф168 1.0-4.5 Front
18.5 KW
Rear
18.5 KW
40.0 * 2.5 *2.2
HD-P100 100 60 Ф114-Ф219 1.0-5.0 Front
22 KW
Rear
22KW
43.0 * 3.0 *2.2
