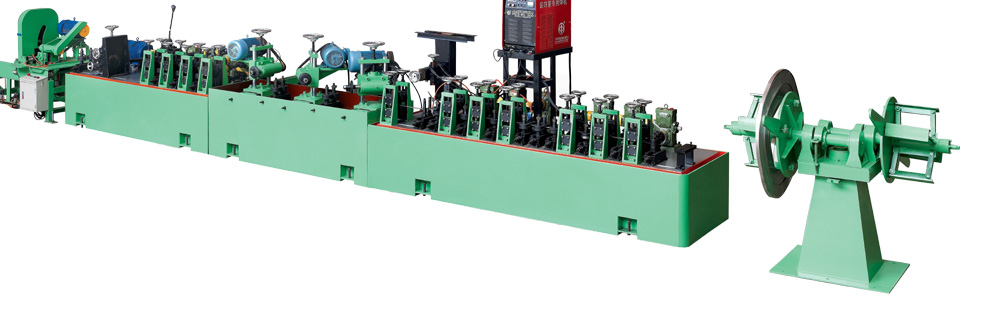

Decorative Pipe/Tube Making Machine

Decorative Pipe/Tube Making Machine

The machine is manufacturing stainless steel pipes/tubes widely applied in furniture, windows,construction, decorative, domestic applications, mechanical structure,bicycle, chair, desk....Etc.

Structures:
● Single side/double side uncoiler
● 3-stage roller tube making machine
  Forming section
  Welding section
  Sizing section
● Cooling section
● Weld bead grinder
● Auto-cut off
● Run out table
● Electric control system
● TIG welding machine + cooling equipment
● Unloading shelf
● Rolls made of Cr12Mov

Automatic production line:
uncoiling, branding, forming, welding, outside weld bead grinding, sizing,, straightening, testing, fixing length, cutting, collecting. It can be done at one time.

Advantages:
a. Our machines are manufactured from finest materials. Steady, durable and long lifetime.
b. Cost effective, high return of investment.
c. Automatic control, safe and easy to operate.
d. Easy to replace the molds, save working hour and increase efficiency.
e. Low noise.
f. The machine and make different type of stainless steel pipe/tube which are round, square, rectangle type of pipe/tube

Specifications:


(Model)
horizontal axis diameter (mm) vertical axis diameter (mm) Pipe
diameter
(mm)
Wall thickness (mm) Main motor power Machine size
(L*W*H) (m)
HD-30 30 25 Ф6-Ф25 0.2-0.8 4KW 19.5 *1.0*2.0
HD-40(S) 40 25 Ф6-Ф32 0.2-1.0 5.5KW 20.0 * 1.0*2.0
HD-40 40 25 Ф9-Ф51 0.2-1.5 7.5KW 21.5 *1.1*2.0
HD-40(L) 40 25 Ф12-Ф64 0.3-2.0 11KW 21.5 * 1.1*2.0
HD-50 50 30 Ф25-Ф76 0.3-2.0 11KW 24 *1.2*2.0
HD-60 60 40 Ф38-Ф114 0.4-2.5 15KW 26 * 1.4*2.0
HD-80 80 50 Ф76-Ф168 1.0-3.5 18.5KW 32 *2.3*2.0
HD-100 100 60 Ф114-Ф219 1.0-4.0 22KW 36* 2.5*2.0
Heating element tube mill line 30 20 Ф5-Ф16 0.2-1.0 4KW 17 * 0.9
