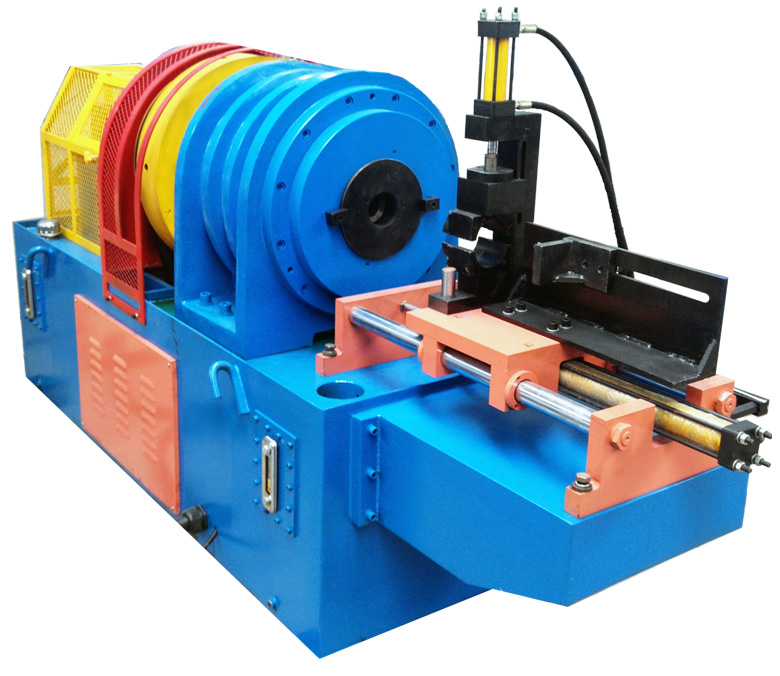

Semi-Automatic Rotary Swaging Machine

Semi-Automatic Rotary Swaging Machine

We are professional dealers of Dongguan LIDE Machinery Hardware Factory in China. LIDE has been professionally engaged in designing, R&D and manufacturing Rotary Swaging Machine, Tube/Pipe Tapering Machine, Square Tube/Pipe Tapering Machine, and other tube/pipe processing machines since 1996. The machines manufactured are first used to process tubes/pipes in their own Hardware Department, thus the machine quality and capacity are been improved and updated in practice by production and processing. Nowadays the machines quality is equal to Taiwanese Machine, while price is much lower.

Stainless steel tube/pipe embossing machine, also known as tube/pipe rotary swaging machine, is mainly used for embossing stainless steel pipe, iron pipe, aluminum pipe and so on. By using different pattern molds, it can emboss different patterns tubes, such as bamboo-shaped type and vase-shaped type etc. Workable diameter of pipe range from ∮12-∮76mm, pipe thickness from 0.4-2.0mm. With good processing quality, lower cost and high efficiency, the rotary swaging machine is an ideal choice for clients to process various kinds of flower pipes. Semi-Automatic model machinery are available for your choosing.

Applications:
widely used in light & lamp industry, metal furniture, auto parts, motorcycle, bicycle, air-conditioning, exercise equipment, sanitary ware, building decoration, security doors and windows, guardrails, staircase, steel furnishment and iron industries, etc.

Features:
1. The machine have two functions: one is embossing round tubes, the other function is tapering tubes by changing working model.
2. Semi-Automatic feeding, higher precision.
3. Pipe/Tube Material:iron, steel,aluminum, stainless steel, copper etc.
4. Easy operation, easy to change different pattern moulds.
5. Very Low noise during working, 75-85db.
6. Stable and reliable performance, high productivity.
7. Molds can be customized, as we make molds as well ,the molds will match the machine perfectly.

Specifications:

Model

HD-L320 Model

HD-L400 Model

pipe range (mm),

∮ 12 - ∮ 40

∮ 25 - ∮ 76

wall thickness (mm)

0.4-1.8

0.5-2.0

Max. forming length (mm)

320

400

forming times(S / times)

3-20

8-30

reduce the wedge program (Ma)

200

250

mold opening and closing volume (Max)(mm)

30

40

main motor (KW)

7.5

11

spindle speed (rev / min)

300

200

spindle height(mm)

800

800

Machine size(m)

2.1*1.1*1.5M

2.2*1.2*1.7M

total weight (kg)

≈ 2550

≈ 3550

Note: We can also provide customized machinery design & producing.
