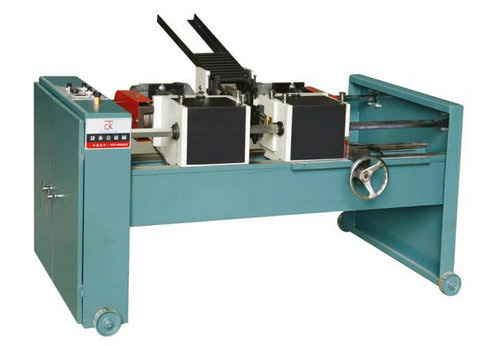

Double Head Chamfering Machine

Double Head Chamfering Machine

Main specification:
● Designed both inside and outside of the tube and rod end, chamfering and face milling can be done once a uniform, rapid and accurate.
● Semi-automatic Type: artificial feed, automatic cutter speed of advance and retreat quickly, to replace parts of different sizes just to make a simple adjustment.
● Bi-chamfered: cam synchronized feed, processing, high stability, can be done simultaneously on both sides, interior angle, exterior angle and the milling face at one time, can achieve a multiple increase in output.
● Suitable material: stainless steel, iron, copper, aluminum tubing and bar.

Standard package:
1. Main Machine
2. Clip mode 1 group
3. Blade 1 Unit
4. 4. Standard Segment Group 11
5. Hand tools 1 package

Special accessories:
1. Different size folder mode
2. Automatic feeding device (depending on workpiece size custom)

Specifications:

Model

HD-EF50A

HD-EF50B

HD-EF50C

HD-EF50D

HD-EF100

Motor

2HP*4

2HP*4

2HP*4

2HP*4

2HP*4

Pipe Diameter (mm)

Ф12-Ф55

Ф12-Ф55

Ф12-Ф55

Ф12-Ф55

Ф55-Ф100

Pipe Length(mm)

80-550

25-550

25-1000

80-1000

40-550

Air Pressure(kg/cm2)

5-8

5-8

5-8

5-8

5-8

Applicable tool bit

1.standard tool bit, applicable range:Ф20-Ф51mm    2.small tool bit, applicable range:Ф9-Ф18mm

Processing capability O.D

External angle of round bar:Ф9-Ф30
