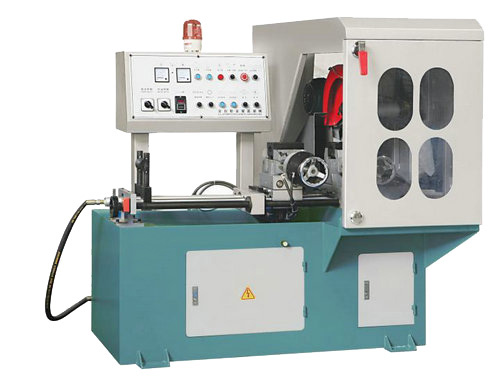

Automatic High Speed Aluminum Cutting Machine

Automatic High Speed Aluminum Cutting Machine

Main Features:
● Firm structure, low vibration, high precision cutting
● High horsepower designed, can be choose to match the cutting demand
● Equipped with a length setting device, easy to set cutting length
● Can be added automatic material loading system to achieve highly automated.
● Suitable for cutting aluminum, copper and its alloy, plastic, carbon and so on
● Machine manufactured as your requirement for different speed and knife.

Specifications:

Model

HD-360AS-3B

Cutting Capacity

Round tube○ (mm)   Ф120

Square tube□ (mm)  90

Rectangle tube (mm) 175*50

Solid Bar● (mm)  Ф110

Feeding Length(mm)

6-600( can feed 3 times)

Motor (Kw)

4/5.5KW

Saw blade size (mm)

TCTФ355-Ф455 aperture:Ф25.4

Main shaft speed (RPM)

2800 or customized

Cooling

Water or oil mist

Air-Pressure (Kg/cm2)

5-8

Machine size (L*W*H) (mm)

1100*2000*1650

Net Weight (Kg)

About 800Kgs
