Flying Shearing CTL Line

Flying Shearing CTL Line

Flying Shears Machine is upgraded edition of cut to length line. It mainly includes uncoiler, straightener, flying shearer, conveyor, stacker, hydraulic system, pneumatic system and electrical system, etc., The line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolling carbon steel, tinplate, stainless steel and all the other kinds of metal materials with surface coating. Flying shear cut to length line is controlled by servo system. Motion follows line speed so that accuracy is maintained even if line speed varies.

Performance:
150 pieces per min. and the fastest line speed reaches 100m/min. Six-roller straightener is adopted to avoid flaws on the plate.

Features:
● Servo-motor driving and human-based interface for operation;
● high accuracy cutting and double-station stacking mechanism;
● high efficiency and high speed;
● heavy structure for durable use;
● Electronics and software give maximum flexibility, and enable fast changeover to new lengths, speeds, and other process parameters;
● Digital control provides for high throughput and accurate cuts with minimal waste.

Specification

Model

Sheet Thickness(mm)

Max.Roll Weight (Ton)

Roll Width(mm)

Speed (M/min)

Capacity (Kw)

Size(L*W) (m)

HD-2-650 NCR

0.2-2.0/0.2-1.2

7

150-630

10-100

Around 110

13*4

HD-2-800 NCR

0.2-2.0/0.2-1.2

10

200-780

10-100

Around 140

13*4

HD-2-1300NCR

0.3-2.0/0.2-1.2

15

300-1250

10-100

Around 210

15*8

HD-2-1600NCR

0.3-2.0/0.2-1.2

18

400-1580

10-100

Around 270

15*10

HD-3-650 NCR

0.2-3.0/0.8-2.0

7

150-630

10-100

Around 140

18*8

HD-3-800 NCR

0.2-3.0/0.8-2.0

10

200-700

10-100

Around 160

20*8

HD-3-1300NCR

0.2-3.0/0.8-2.0

15

300-1250

10-100

Around 260

25*10

HD-3-1600NCR

0.3-3.0/1.0-2.0

25

400-1580

10-100

Around 320

25*12

Note: It can be designed and made according to special demands of customers, above mentioned data are for reference only.

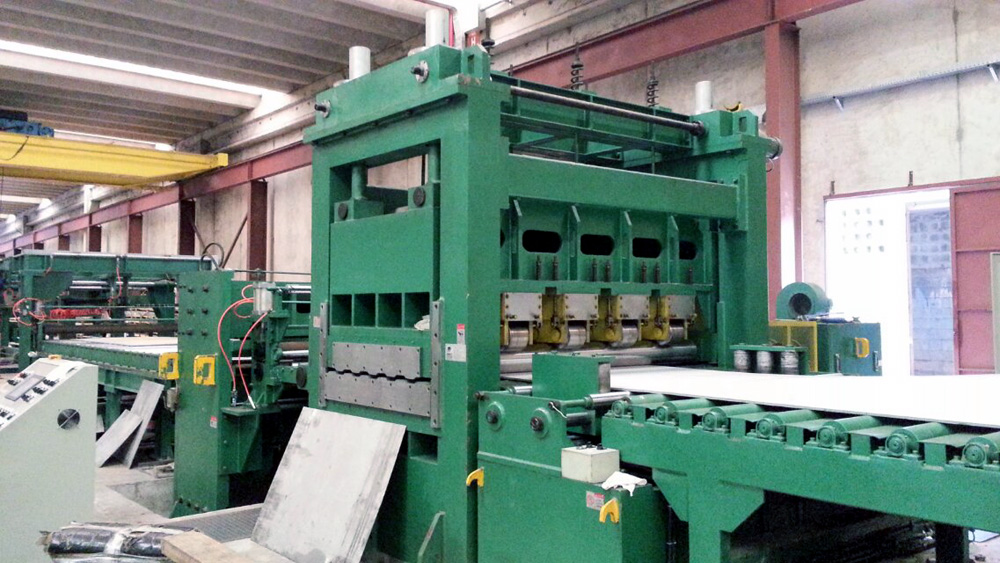

Detailed pictures

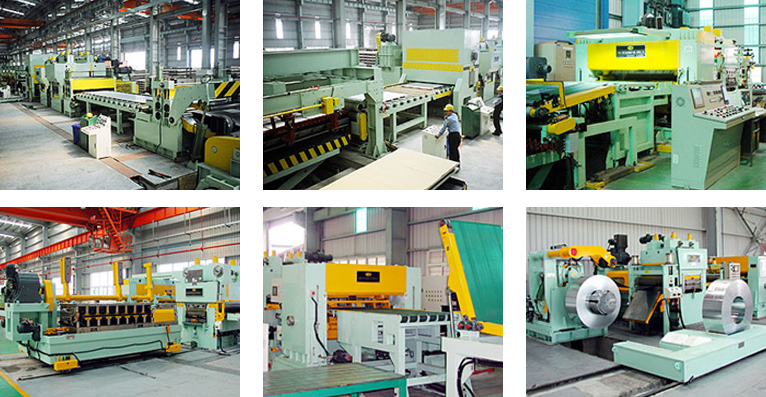

Flying Shearing CTL Line Detailed pictures
