Cut To Length Line

Cut To Length Line

General introduction
Cut-to-Length lines are the right technological solutions to ensure world-class quality of the products in terms of flatness and dimensional tolerances. The CTL machine line can do uncoiling, straightening, gauging, cross-cutting to length and stacking work. It mainly includes uncoiler, straightener, gauge, shearer, conveyor,stacker, hydraulic system, pneumatic system and electrical system, etc. The line can make sure of accurate feeding and shearing. It can be widely used in cold or hot rolled carbon steel, tinplate, stainless steel and all other kinds of metal materials with surface coating. The cut to length line is controlled by PLC system. The information of length, shearing numbers and speed can be input to the PLC systems via HMI(Human Machine Interface) touch screen. When the needed shearing quantity is reached the line can stop automatically. The line speed can be adjusted, It has a gauge with high precision, and whole line can work automatically and operate easily, smooth plates can be made.

Workflow
Coil loading→Decoiling→ Pre-straightening→ Buffering→ Fine straightening & feeding→ transverse cutting→ stacking→ cut sheets out

Main components:
● coil car
● decoiler
● peeler entry table
● Mandrel Decoiler
● Side Guide
● Straightener
● Measuring table
● Hydraulic Shears
● Conveyor
● Pneumatic Stacker
● Unloading table
● Hydraulic and Pneumatic System
● pneumatic system
● Electric System

Main technical parameter

Model

HD-CTL650

HD-CTL850

HD-CTL1400

HD-CTL1600

HD-CTL2100

strip width(mm)

150-600

200-800

300-1250

300-1500

600-2000

material thickness(mm)

0.2-2.0

0.2-2.0

0.3-2.0; 2.0-8.0

0.5-3.0;
3.0-8.0

6-25

Cut length(mm)

200-2000

200-2000

200-3000

200-4000

200-8000

Coil Weight (ton)

5

8

12

25

35

Capacity(kw)

40

60

85

150

210

Cutting speed (m/min)

0-50

0-50

0-60

0-60

0-60

Size(L*W)(m)

18*4

20*4

25*4

30*4

35*6

Note: It can be designed and made according to special demands of customers, above mentioned data are for reference only.

Features:
● Thanks for the most advanced computerized numerical control (CNC) plus AC servo drive technology together with fully automatic hydraulic controlled uncoiler that ensure our CNC cut-to-length machine to achieve you tough cutting job for sheet metals with fast speed, greater accuracy improved efficiency, easy operation, reducing manpower.
● Greater cutting accuracy.
● Improved reliability.
● Planned production.
● Flexible processing alternatives.
● Features for CNC control system:
● High speed computerized numerical control (CNC) and AC servo drive system for better positioning / cutting accuracy and reliability.
● High resolution graphic monitor for plant floor man machine interface (MM) message handling and display.
● Programmable function keys for specific tasks.
● Cutting function could be selected in either auto or manual mode, in auto mode the system could make single step or continual operations.
● Key-in could be mode for setting: Cutting length, quantity, job no., and parameter adjustment...via nema type front panel.
● Dedicated screen / menu could be selected by the operator named as: Job no., cutting length, quantity, parameters for setting operational parameters.

Advantage of cut to length lines:
● Right performance for every applications.
● Quick return on investment
● Short start-up time
● Siemens automation system
● Life cycle partnership
● Core components manufactured, pre-assembled and tested in our factory according to international standards.

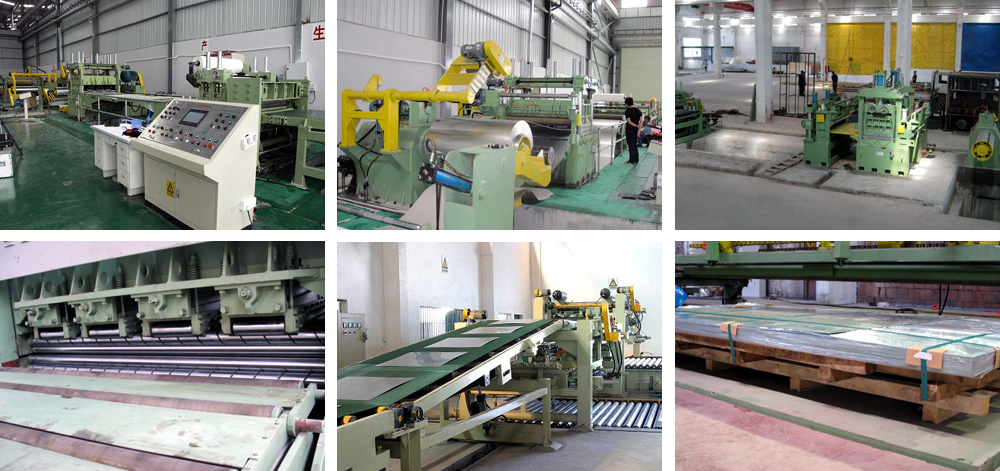

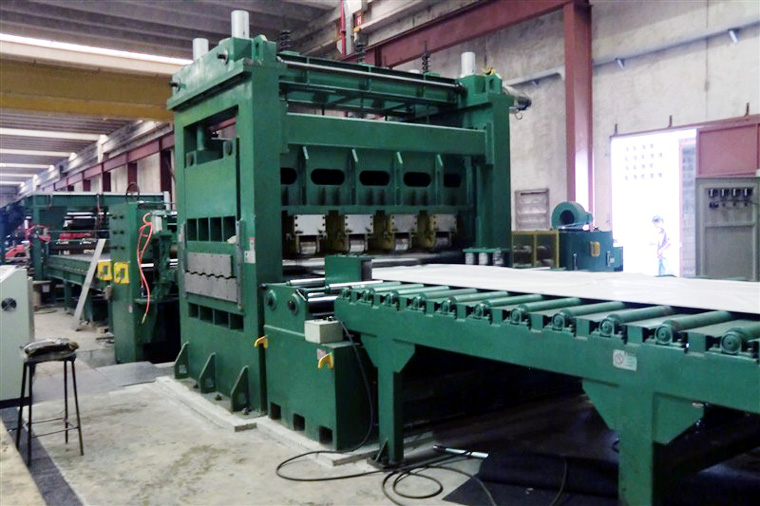

Detailed pictures

Cut To Length Line Detailed pictures
